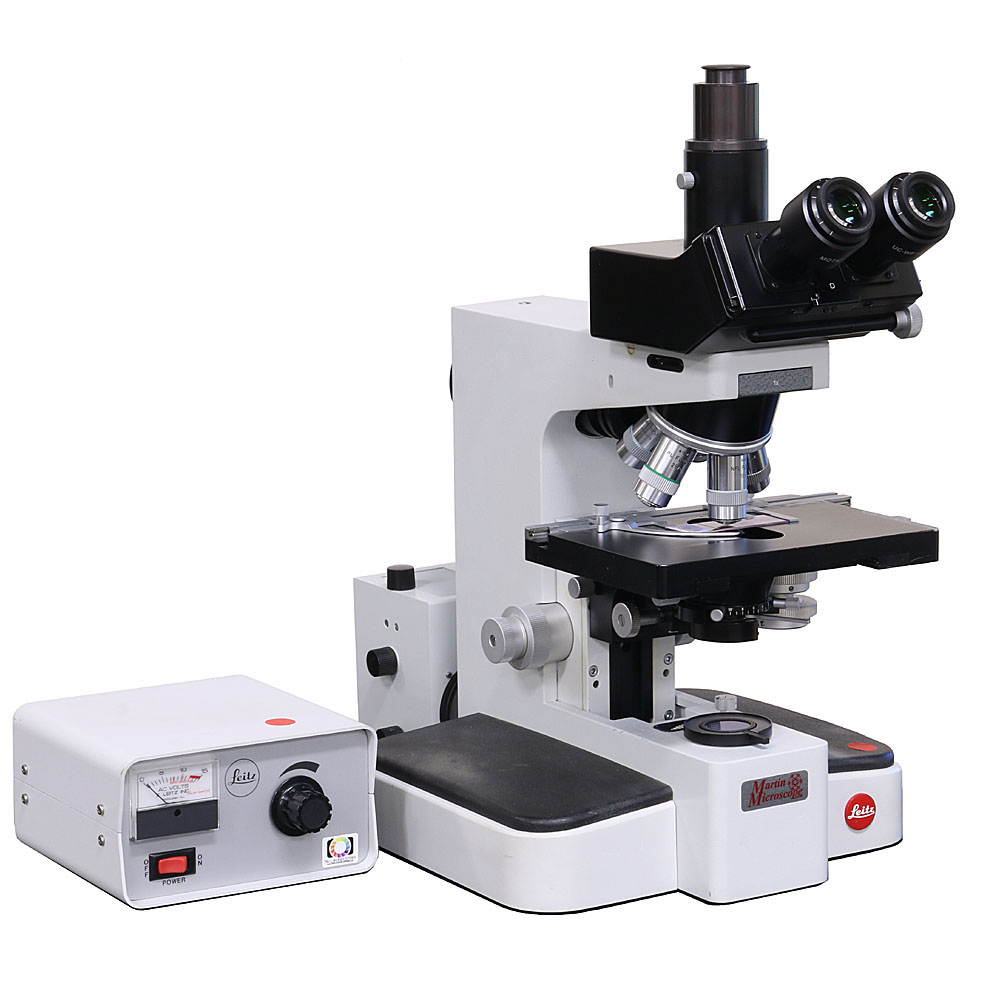

Leitz Orthoplan Research Microscope (Used)
Leitz Orthoplan Research Microscope (Used)
A very clean refurbished Leitz Orthoplan research microscope with NPL Fluotar and Plan Apo objectives providing exceptional images. The large 6"x8" stage has oversized X/Y control knobs for very smooth and precise movement. The illumination is 12V/100W halogen powered by an original Leitz external transformer. The eyepieces are new Motic 10x/22mm wide field and high eyepoint because the original Leitz SV 8x/ eyepieces did not provide a very wide field and were deemed less comfortable to use. Everything else is original Leitz.
MICROSCOPY TECHNIQUE(S):Brightfield transmitted lightHEAD:Trinocular with ISO 38mm PhototubeEYEPIECES:New Motic 10x/22mm Focusing, High EyepointNOSEPIECE:Quintuple reversedOBJECTIVES:NPL Fluotar 6.3x/0.20; NPL Fluotar 16x/0.45; Plan Fluotar 25x/0.60; Plan Apo 40x/0.75; Plan Apo 100x/1.32 oilSTAGE:6″x8″ XY Mechanical with Slide HolderCONDENSER:Apl oil 1.25 with Iris Diaphragm & swing out top elementCONDENSER CARRIER:Focusable and centerable for Koehler illuminationFIELD DIAPHRAGM:YesILLUMINATION:12V/100W halogen with external transformerADDITIONAL INFORMATION: CAMERA ADAPTERS FOR THIS MICROSCOPE:
| LEITZ ORTHOPLAN | |
| MICROSCOPY TECHNIQUE(S): | Brightfield transmitted light |
| HEAD: | Trinocular with ISO 38mm Phototube |
| EYEPIECES: | New Motic 10x/22mm Focusing, High Eyepoint |
| NOSEPIECE: | Quintuple reversed |
| OBJECTIVES: | NPL Fluotar 6.3x/0.20; NPL Fluotar 16x/0.45; Plan Fluotar 25x/0.60; Plan Apo 40x/0.75; Plan Apo 100x/1.32 oil |
| STAGE: | 6″x8″ XY Mechanical with Slide Holder |
| CONDENSER: | Apl oil 1.25 with Iris Diaphragm & swing out top element |
| CONDENSER CARRIER: | Focusable and centerable for Koehler illumination |
| FIELD DIAPHRAGM: | Yes |
| ILLUMINATION: | 12V/100W halogen with external transformer |
| ADDITIONAL INFORMATION: | |
| CAMERA ADAPTERS FOR THIS MICROSCOPE: | C-Mount |
$3,200.00
