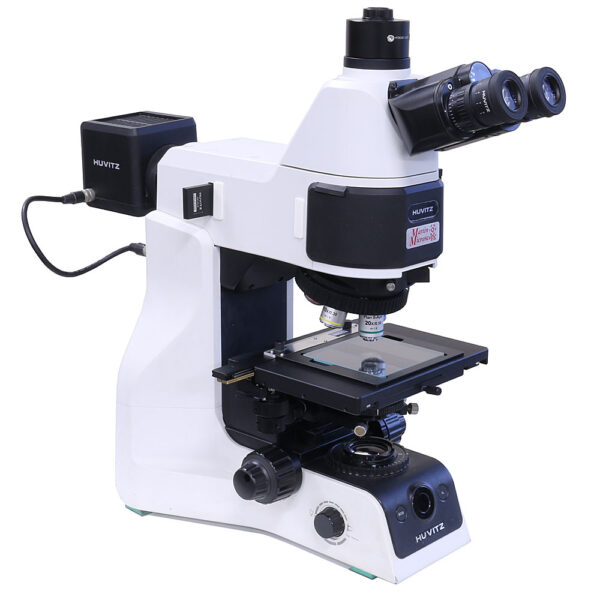

The Huvitz HRM-300 Brightfield metallurgical microscope is a research quality instrument. This microscope is used and warrantied for one year. It has both reflected and transmitted light brightfield optics. The 10x, 20x, and 50x objectives are new Motic branded lenses (Motic purchased the Huvitz microscope division and sells the same instrument as the configurable PA53-MET).
We can provide new Motic brand polarized light accessories and reflected light DIC for additional cost - contact us if interested in these upgrades.
HUVITZ HRM300 | |
MICROSCOPY TECHNIQUE(S): | Metallurgical brightfield |
HEAD: | Trinocular, Erect Image, 100% beamsplitter slider |
EYEPIECES: | 10x/25mm Ultra Wide Field, Focusing |
NOSEPIECE: | Quintuple reversed with DIC slot |
OBJECTIVES: | Plan Fluor EPI 5x, 10x, 20x, 50x |
STAGE: | XY Mechanical |
CONDENSER: | Abbe with Iris Diaphragm |
CONDENSER CARRIER: | Focusable and Centerable |
FIELD DIAPHRAGM: | Yes |
ILLUMINATION: | 12V/100W Halogen for Reflected and Transmitted Light |
ADDITIONAL INFORMATION: | polarizer / analyzer, DIC slider |
CAMERA ADAPTERS FOR THIS MICROSCOPE: | C-Mount and T-Mount adapters available – contact us |
$6,460.00
