M4KHD2/M 4kHD Digital Microscope Camera

M4KHD2/M 4kHD Digital Microscope Camera

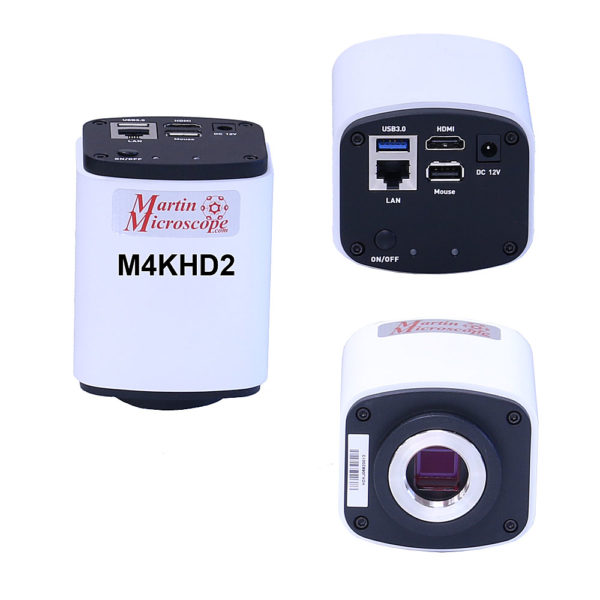

The M4KHD2 represents the next generation in digital video cameras.  The camera outputs 4K HD video via HDMI or USB3 with cables included.  It can capture images directly to a USB thumbdrive, and plugs directly into any HDMI monitor or projector (1080p or 4K).  It includes built-in software for calibration of your microscope for accurate measuring of images on-screen without the need for a computer.  Or, use the included basic Capture V2.2 software to view live images on a Windows 10 computer and capture them in normal or Extended Depth of Focus modes.  This is our most popular camera for classroom or conference room applications and is also popular for industrial inspection, building on the success of its predecessor model, M1080HD.

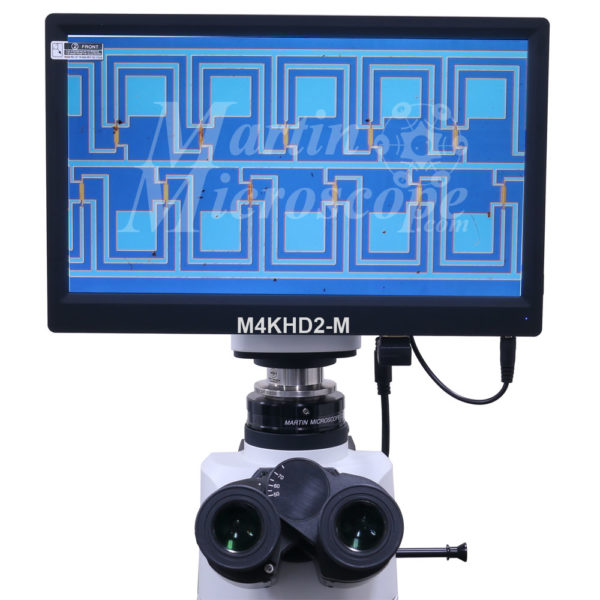

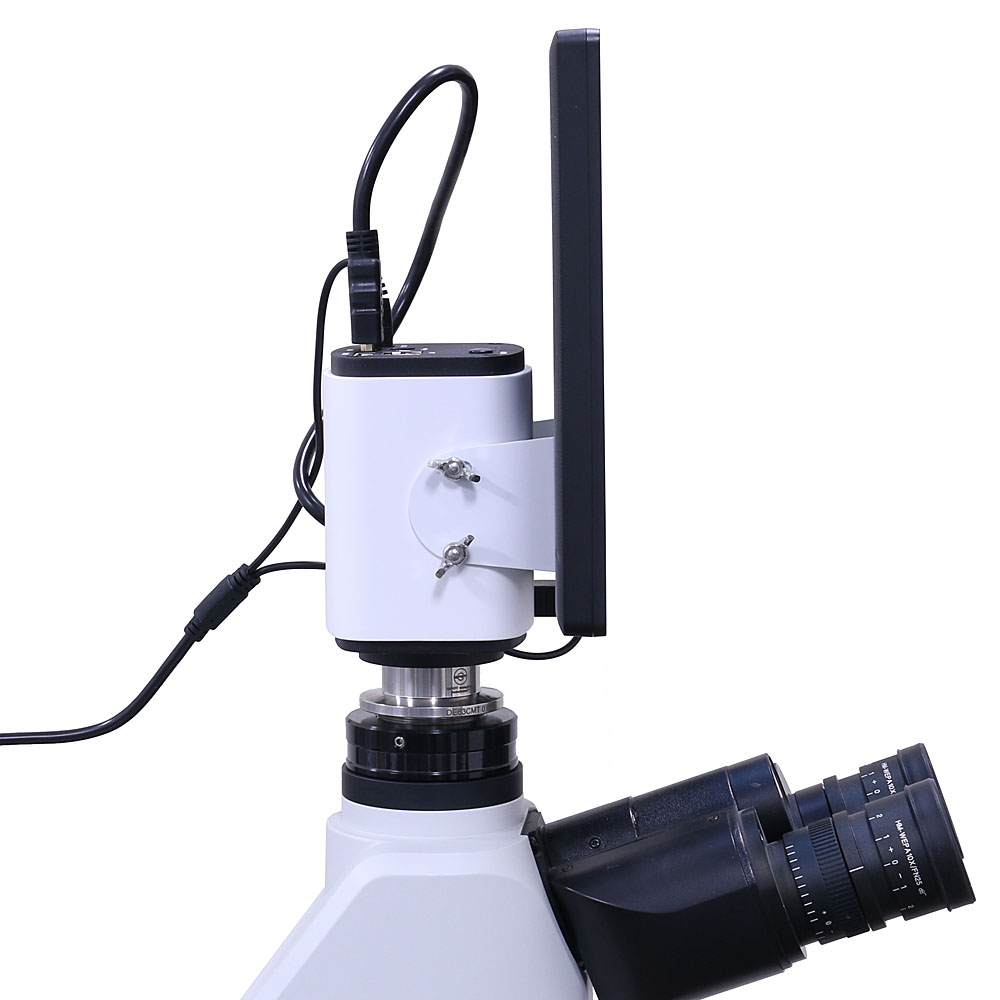

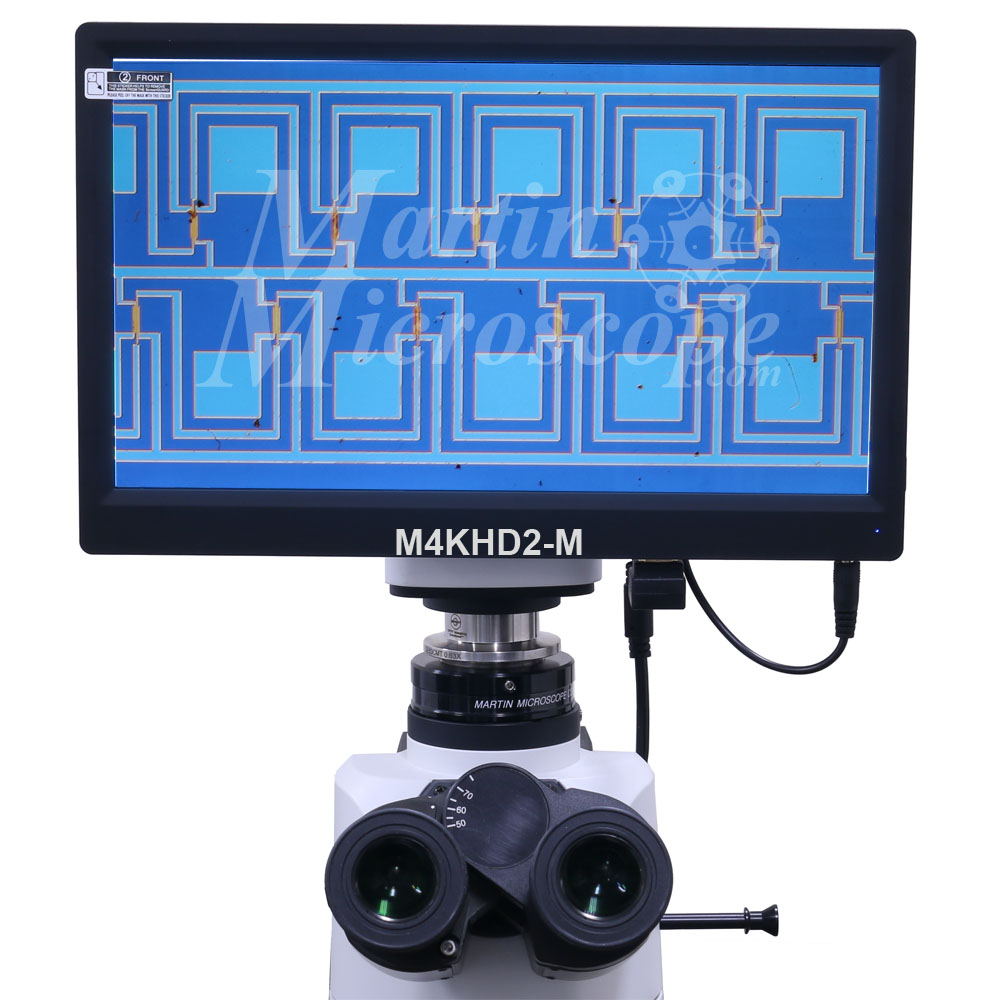

Optionally, the camera can be purchased with its own attached 11" HDTV monitor (M4KHD2-M).

Requires C-mount microscope adapter 0.65x, sold separately.

VIEW SAMPLE IMAGES TAKEN WITH THE M4KHD2 CAMERA ON OUR EXCLUSIVE CAMERA COMPARISON PAGE.

M4KHD/M
MOUNT: C
OUTPUT: USB3, HDMI
MEGAPIXEL RESOLUTION: 8MP
SENSOR SIZE: 2/3″
PIXEL SIZE: 2.4um
COLOR / MONOCHROME: Color
INCLUDED SOFTWARE: Capture V2.2
SUPPORTED OPERATING SYSTEMS: Windows 10 for USB3
OPTIONAL SOFTWARE: N/A
ADDITIONAL INFORMATION: USB3 and HDMI cables included; USB Mouse Controller included; 11″ attachable monitor optional

$1,495.00$1,895.00
