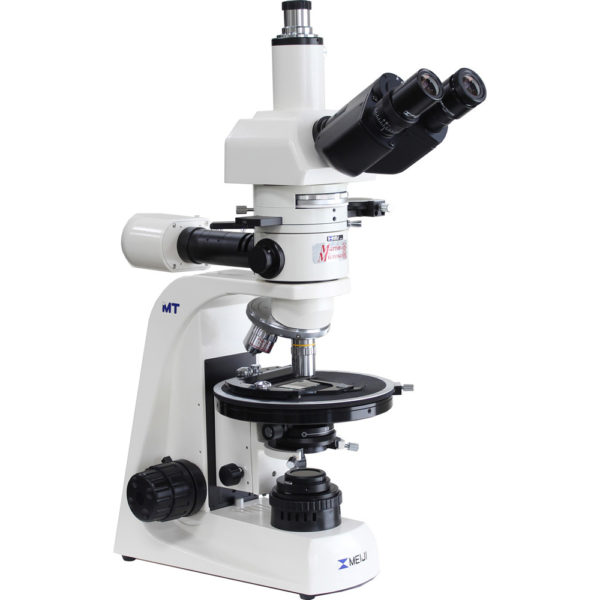

The MT9950L Pol is Meiji's most advanced Polarizing microscope, now with LED illumination for both reflected and transmitted light. Our configuration includes strain-free objectives 4x, 10x, 20x and 40x, and a mechanical stage.
Made in Japan
MEIJI MT9950 POL
MICROSCOPY TECHNIQUE(S):
Brightfield / Polarized Light
HEAD:
Trinocular 80/20 beamsplitter
EYEPIECES:
10x/20mm
NOSEPIECE:
Quadruple reversed centerable
OBJECTIVES:
Strain-free 4x, 10x, 20x, 40x
STAGE:
Circular rotating with attachable mechanical stage
CONDENSER:
Abbe 1.25NA with Iris Diaphragm, Pol, with flip-out top element
CONDENSER CARRIER:
Focusable and centerable for Koehler illumination
FIELD DIAPHRAGM:
Yes
ILLUMINATION:
LED transmitted and reflected
ADDITIONAL INFORMATION:
Rotatable Polarizer / Analyzer, focusable Bertrand lens; Full and Quarter Wave slider
