MM50-xx Mirrorless Camera Package
MM50-xx Mirrorless Camera Package

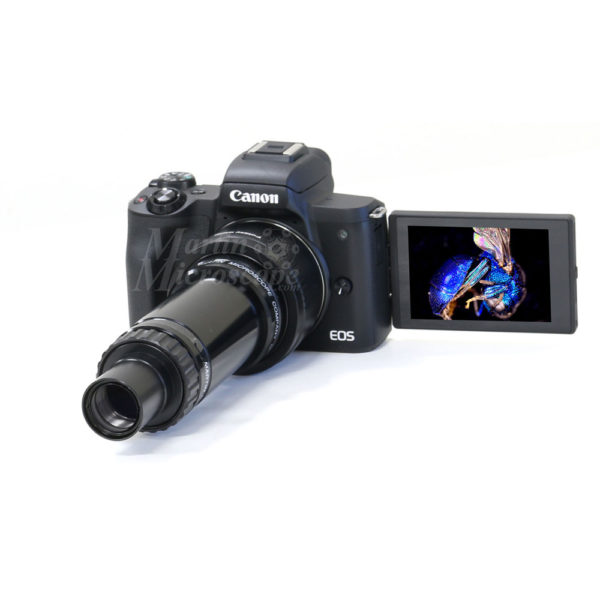

Martin Microscope pioneered the use of consumer digital cameras for microscopy when we designed our first widefield adapter in 1999. The MM50-xx mirrorless package is one of our latest recommended consumer camera packages and it features the Canon EOS M50 mirrorless camera, software and accessories, and one of our custom microscope adapters. The EOS M50 has a 24MP sensor (6000x4000 pixels), and adds built-in WiFi capability so it can be controlled by a tablet or smart-phone as well as wired USB Live View to Windows and Mac computers, with no shutter vibration. Package includes Canon M50 camera with EOS Utility software, a Martin Microscope Adapter (see below), Canon AC Adapter, 16GB SD card, USB Cable, and the standard 15-45mm lens for off-microscope use.
There are now 20 variations to choose from depending on what microscope(s) you plan to use with this package. The standard MM50-16C is our universal adapter, fitting all standard 23mm and 30mm eyetubes (in place of an eyepiece or photoeyepiece), plus standard 1x C-mounts (sold separately). The MM50-16B fits older standard ISO 38mm ports directly. All the other packages include one of our MDSLR adapters for specific microscope brands / models as listed under the Specs tab above.
| Package: | Description: | Adapter | Mag | Package $ |
| MM50-16C | Universal 23/30mm/C-mt | MM16-C | 1.6x | 1,699.00 |
| MM50-16B | for ISO 38mm phototubes | MM16-B | 1.6x | 1,699.00 |
| MM50-16F | for older Nikon “chimney” style phototubes | MM16-F | 1.6x | 1,699.00 |
| MM50-16J | for 25mm O.D. phototubes | MM16-J | 1.6x | 1,699.00 |
| MM50-AO | AO Series 10 / 110 | MDSLR-AO | 1.38x | 1,399.00 |
| MM50-410 | AO Series 410 / Diastar | MDSLR-410 | 1.38x | 1,399.00 |
| MM50-H7 | Huvitz HSZ700 | MDSLR-H7 | 1.38x | 1,399.00 |
| MM50-LX | Labomed LX400 | MDSLR-LX | 1.38x | 1,399.00 |
| MM50-6Z | Labomed Luxeo 6Z / Unitron Z850 | MDSLR-6Z | 1.38x | 1,399.00 |
| MM50-HC | Leica Compound HC | MDSLR-HC | 1.38x | 1,399.00 |
| MM50-LE | Leica DME / DMEP | MDSLR-LE | 1.38x | 1,399.00 |
| MM50-LM | Leica Stereo threaded port | MDSLR-LM | 1.38x | 1,894.00 |
| MM50-EM | Meiji EMZ8TR/EMZ12TR/EMZ13TR | MDSLR-EM | 1.38x | 1,399.00 |
| MM50-BA2 | Motic BAx10 / AE2000 / AE31E | MDSLR-BA2 | 1.38x | 1,399.00 |
| MM50-MK | Motic K / SMZ stereo | MDSLR-MK | 1.38x | 1,399.00 |
| MM50-NE | Nikon E-series Compound | MDSLR-NE | 1.38x | 1,399.00 |
| MM50-NK | Nikon LV / SMZ 40mm port | MDSLR-NK | 1.38x | 1,399.00 |
| MM50-BX | Olympus BX / SZX | MDSLR-BX | 1.38x | 1,399.00 |
| MM50-SZ | Olympus SZ stereo | MDSLR-SZ | 1.38x | 1,399.00 |
| MM50-M4 | Wild / Leica M400 / M420 | MDSLR-M4 | 1.38x | 1,899.00 |
| MM50-ZS | Zeiss current 30mm port | MDSLR-ZS | 1.38x | 1,399.00 |
| MM50-ZJ | Zeiss Jena 250 series (except Jenapol) | MDSLR-ZJ | 1.38x | 1,399.00 |
Not sure which one you need? Contact us – we’ll be happy to assist!
Download EOS Utility software here.
Our YouTube video showing how to install and use the EOS Utilities software which controls the camera via USB…
$1,399.00 – $1,899.00
