MTLED32 Stereo Stands


MTLED32 Stereo Stands

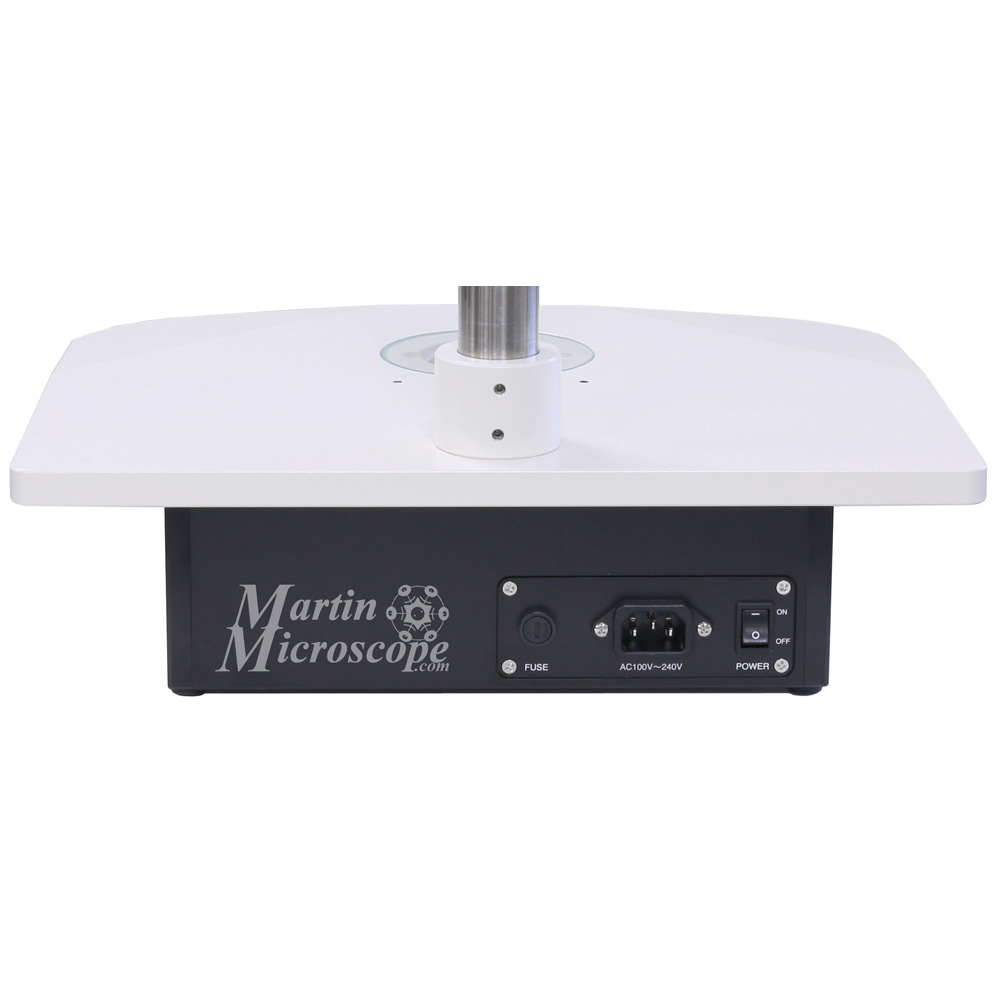

Our premium LED transmitted light stereo stand is imported from Japan, customized to our specifications.  These have a built-in variable intensity LED with a substage mirror that both tilts and slides forward and back for brightfield as well as oblique and pseudo-darkfield.  The mirror has a clear side and a frosted side for more diffuse illumination.  They measure 15" wide x 12" deep x 16.75" tall and include a Clear Glass stage plate (95mm diameter).  They have a 32mm diameter post suitable for Nikon, Olympus, Zeiss, certain Leica and Meiji RZ microscopes.  The distance from the center of the post to the center of the stage plate is approx. 6.5".

The MTLED32 includes the LED illuminated stand, vertical post, safety stop, clear glass stage plate, US power cord.  The MTLED32-CF adds a Coarse / Fine focus holder for 76mm microscope heads.  The MTLED32-CF-2 adds a Schott EasyLED dual gooseneck post-mount LED illuminator for reflected light.

An X/y Mechanical Stage option is also available - Contact Us for more information.
