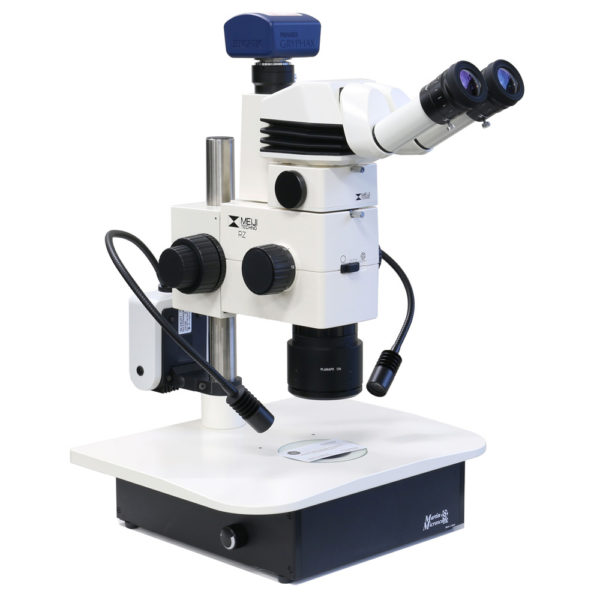

This system combines our RZ-APO research zoom stereomicroscope with the Jenoptik Gryphax NAOS 20MP camera. The microscope is common main objective type modular microscope with ergonomic tilting head, phototube, 10x eyepieces, 10:1 zoom range (9.5x to 95x as configured), and our exclusive Plan APO 1.26x main objective. The microscope is mounted on our MTLED32 LED transmitted light stand with tilting / sliding mirror, and includes the Schott EasyLED dual gooseneck for reflected light. The NAOS camera outputs USB3 to a computer (not included), and captures images at up to 20MP resolution. The camera includes Gryphax software for Windows 10, Mac, and Linux.
RZ-APO / NAOS SYSTEM |
|
HEAD: |
Trinocular, Ergonomic with Phototube |
EYEPIECES: |
10x/24mm Widefield Focusing |
MAGNIFICATION(S): |
Zoom 0.95x to 9.5x with detents for calibration |
OBJECTIVE: |
Plan APO 1.26x |
MAGNIFICATION RANGE AS CONFIGURED: |
9.5x to 95x |
WORKING DISTANCE AS CONFIGURED: |
61mm |
FOCUS HOLDER: |
Coarse / Fine |
STAND: |
plain vs transmitted light, etc |
ILLUMINATION: |
LED transmitted and reflected light |
ADDITIONAL INFORMATION: |
|
CAMERA ADAPTERS FOR THIS MICROSCOPE: |
Includes Jenoptik Gryphax NAOS 20MP Camera, Adapter, and Gryphax Software for Windows10 / MacOS |
