Zeiss Jena Laboval-4, Used
Zeiss Jena Laboval-4, Used

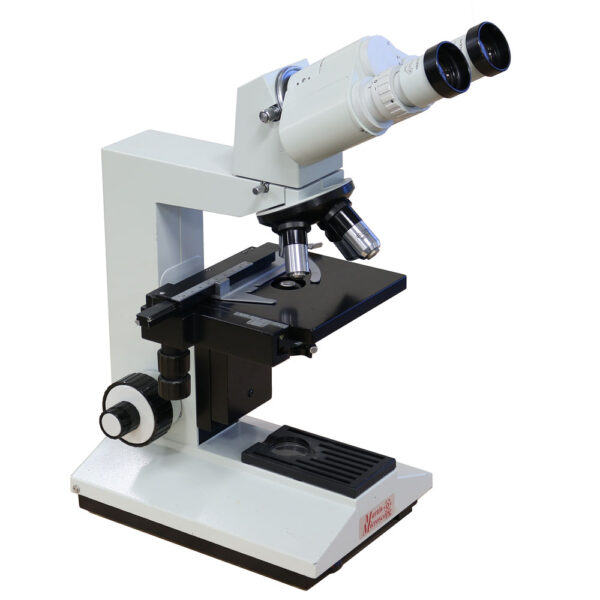

The Carl Zeiss, Jena, Laboval 4 is a basic binocular compound microscope with brightfield illumination. Suitable for biology classrooms and medical labs, this used microscope has been cleaned and lubricated and brought back to good working order. It features 10x/18mm widefield, high-eyepoint eyepieces; Siedentopf binocular head; quadruple nosepiece; stage with attached X/Y mechanical stage; focusing condenser with iris diaphragm; variable 6V/20W halogen illumination. Optics are clean and crisp.
| ZEISS LABOVAL 4 | |
| MICROSCOPY TECHNIQUE(S): | Brightfield |
| HEAD: | 30° Binocular Siedentopf |
| EYEPIECES: | 10x/18mm Widefield High-eyepoint |
| NOSEPIECE: | Quadruple |
| OBJECTIVES: | Semi-Plan 3.2x/0.10; 10x/0.25; 40x/0.65; 100x/1.25 oil with iris |
| STAGE: | Plain Stage with attached XY Mechanical |
| CONDENSER: | Abbe 1.25NA with Iris Diaphragm |
| CONDENSER CARRIER: | Focusable |
| FIELD DIAPHRAGM: | No |
| ILLUMINATION: | 6V/20W halogen |
| ADDITIONAL INFORMATION: | |
| CAMERA ADAPTERS FOR THIS MICROSCOPE: | N/A |
$299.00
