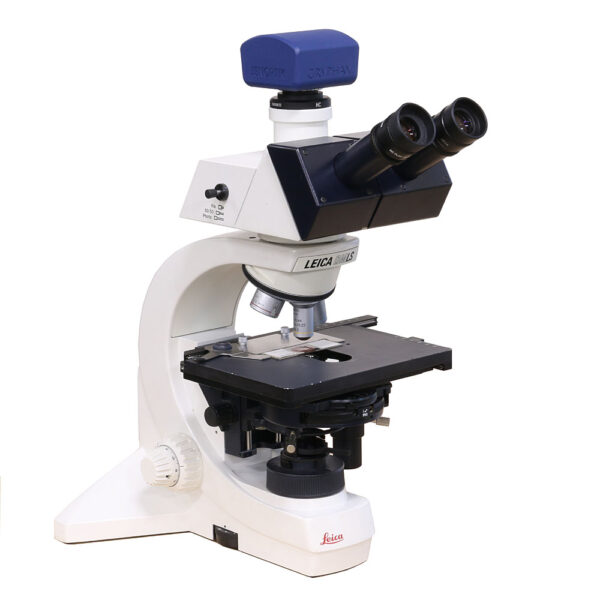

Leica DMLS Trinocular Phase Contrast Microscope (Used)
Leica DMLS Trinocular Phase Contrast Microscope (Used)
Leica DMLS Trinocular Phase Contrast microscope, used / refurbished, with new Jenoptik Gryphax AVIOR 8MP USB3 digital camera for Windows 10/11 and MacOS (requires computer, not included). The microscope features a set of Plan Achromat Phase objectives, 10x, 40x, 100x oil with a matching Phase Turret Condenser with three phase rings (PH1, PH2, PH3). The trinocular head features a three-way beam splitter slider to divert 100% of the light to the eyepieces, 100% to the camera, or a 50/50 split. A complete digital microscopy package, ready to go to work.
| LEICA DMLS PHASE CONTRAST | Brightfield & Phase Contrast, Transmitted Light |
| HEAD: | Trinocular Siedentopf; 3-way beamsplitter slider |
| EYEPIECES: | 10x/20mm Widefield, High-Eyepoint, Focusing |
| NOSEPIECE: | Quintuple, reversed |
| OBJECTIVES: | C Plan Achromat: 4x/0.10 (BF), 10x/0.22Ph1; 40x/0.65Ph2; 100x/1.25Ph3 oil |
| STAGE: | XY Mechanical with Slide Holder |
| CONDENSER: | Phase Turret with Iris Diaphragm, Ph1, Ph2, Ph3 |
| CONDENSER CARRIER: | Focusable and centerable for Koehler illumination |
| FIELD DIAPHRAGM: | Yes |
| ILLUMINATION: | 12V/30W Halogen |
| ADDITIONAL INFORMATION: | Power cord, dust cover |
| CAMERA ADAPTERS FOR THIS MICROSCOPE: | Includes 0.4x C-Mount Adapter and Jenoptik Gryphax AVIOR 8MP USB3 Digital Camera with Gryphax software for Win/Mac |
$5,680.00
