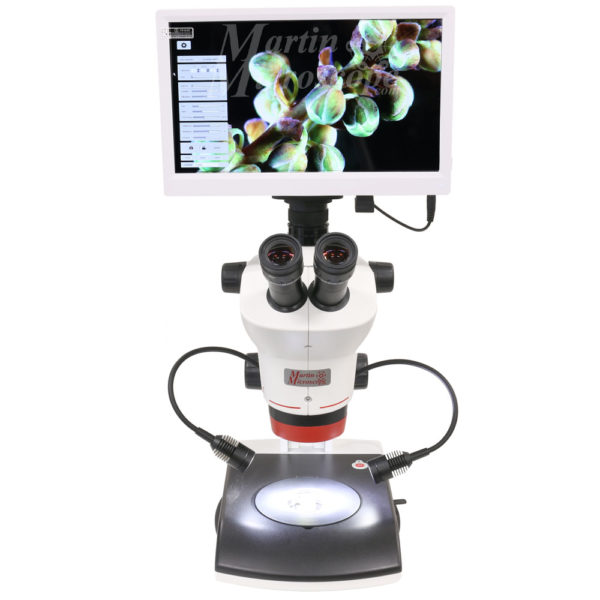

This package includes a trinocular zoom stereomicroscope with 8x to 50x magnification range, and our M4KHD2M high-definition stand-alone camera / monitor.
The microscope includes LED illumination in the form of a ring light, dual gooseneck LEDs, and an attachable transmitted light brightfield / darkfield base. The transmitted light base can be removed as needed. Both clear glass and black / white stage plates are included.
The image from the microscope can be seen through both eyepieces and on the attached screen simultaneously. The field of view on screen has been maximized using our custom 0.65x C-mount adapter. Images and video can be captured to a USB thumb drive in the camera, and the camera features a digital zoom, area of interest mask, side-by-side image comparison, crossline or grid pattern generator, and even calibrated measurements. The zoom has detents at 0.8x, 1x, 2x, 3x, 4x and 5x for calibration.
This has been a very popular system for both teaching and QC inspection environments.
|EYEPIECES:||10x/22mm Widefield High Eyepoint Focusing|
|MAGNIFICATION(S):||Zoom 0.8x to 5x with detents for calibration|
|MAGNIFICATION RANGE AS CONFIGURED:||8x to 50x|
|WORKING DISTANCE AS CONFIGURED:||110mm|
|ILLUMINATION:||LED transmitted Brightfield / Darkfield; LED reflected light Ring Light / Dual Arm|
|CAMERA ADAPTERS FOR THIS MICROSCOPE:||Includes 0.65x C-Mount and M4KHD2M Camera with 11″ Monitor|
