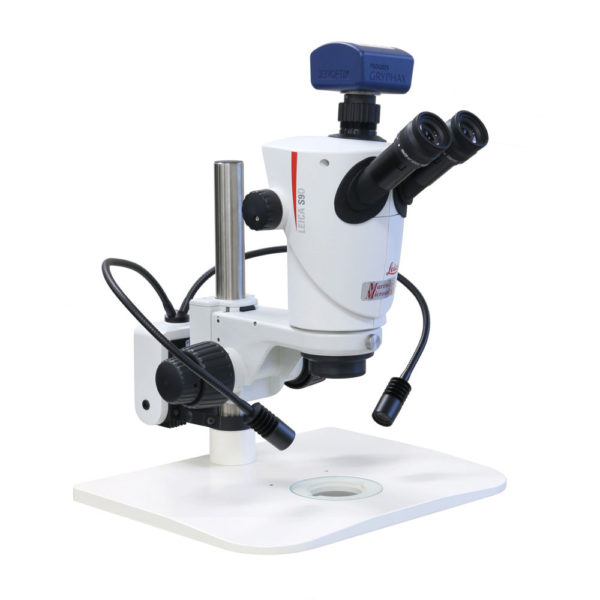

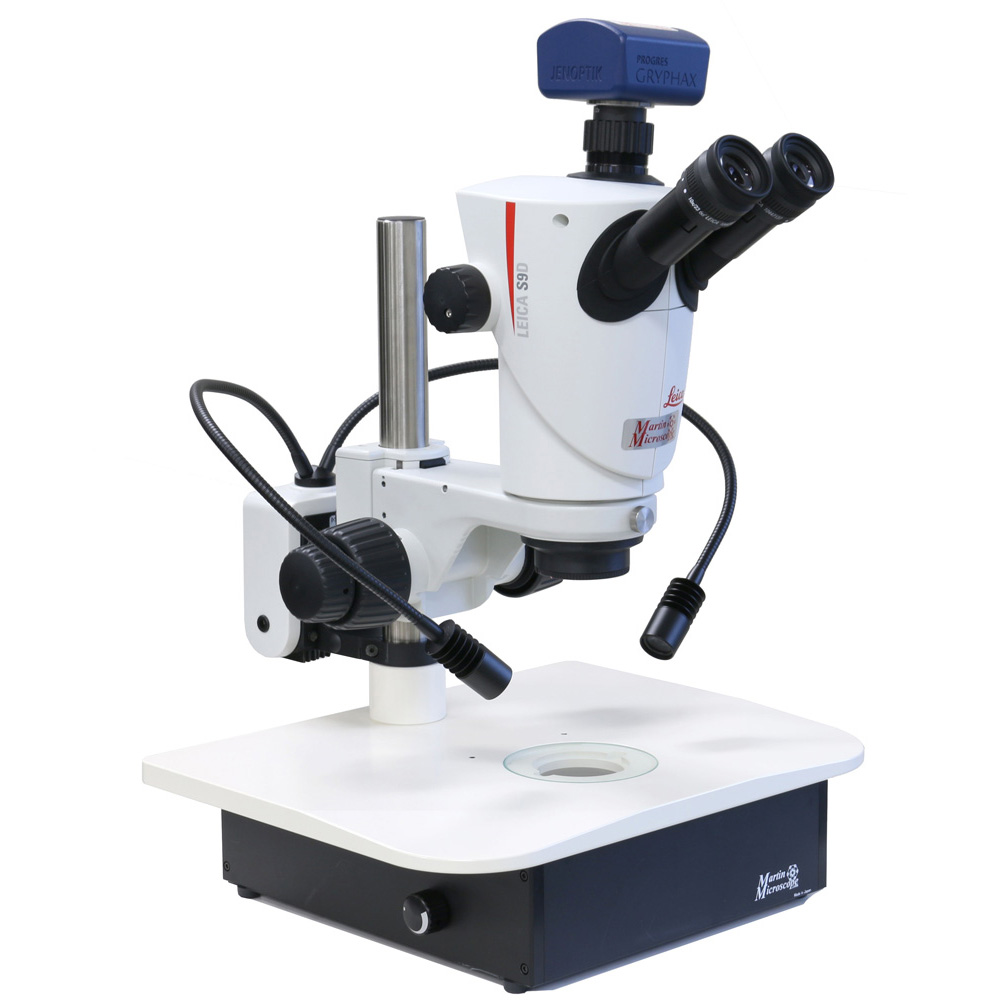

This system combines the Leica S9 trinocular zoom stereomicroscope with the Jenoptik Gryphax AVIOR 8MP camera. The microscope is Greenough type with apochromatic optics, phototube, 10x eyepieces, 9:1 zoom range (6x to 55x as configured), mounted on your choice of our MRL32-CF reflected light or MTLED32-CF LED transmitted light stand with tilting / sliding mirror and coarse and fine focus holder. Also includes the Schott EasyLED dual gooseneck for reflected light. The AVIOR camera outputs USB3 to a computer (not included), and captures images at up to 8MP resolution. The camera includes Gryphax software for Windows 10, Mac, and Linux.
MS9D-AVIOR SYSTEM | |
HEAD: | Trinocular |
EYEPIECES: | 10x/23mm Focusing |
MAGNIFICATION(S): | Zoom 0.61x to 5.5x with detents for calibration |
OBJECTIVE: | Greenough Apochromatic |
MAGNIFICATION RANGE AS CONFIGURED: | 6.1x to 55x |
WORKING DISTANCE AS CONFIGURED: | 122mm |
FOCUS HOLDER: | Coarse / Fine |
STAND: | Choice of LED Transmitted Light or Plain |
ILLUMINATION: | Schott EasyLED dual arm; LED transmitted optional |
ADDITIONAL INFORMATION: | |
CAMERA ADAPTERS FOR THIS MICROSCOPE: | Includes Jenoptik Gryphax AVIOR 8MP USB3 Camera, Adapter, and Gryphax Software for Windows10 / MacOS |
$7,990.00 – $9,390.00
